We are Auckland’s leading supplier of genuine Oztech Retractable Roof Systems –
the most installed waterproof retractable roof system in New Zealand and Australia.
Oztech’s range of architectural retractable roof and pergola systems are suitable for use in any weather conditions and for a large range of residential and commercial applications. Whether it’s a retractable roof for your backyard or deck that you’re looking for or a custom roof system to meet the needs of a restaurant or commercial project there is an Oztech model to suit.
Recent Work
Here are a few of our recent Oztech installations in and around Auckland.
CLICK ON THE IMAGES BELOW TO SEE MORE PHOTOS OF THAT PARTICULAR JOB
A picture is worth and thousands words, so a video must be more… Below is a playlist of some of the most recent Oztech installations by Dave Giddens Sailmakers in and around Auckland. [Hover over the video and use the menu on the top left to jump from one video to another.]
Models
By far our most popular model is the Oztech Tera, but there is a full range of models to suit a range of installation requirements and aesthetics.
The TERA retractable pergola system provides the user with a designer space to allow outdoor areas to be used all year round. The system can easily be modified into cantilever or freestanding systems. The TERA rafter profiles (80mm x 125mm) have been designed with unique water guard side channels and cast aluminium end plates to allow...
The Izi retractable roof system is designed to be integrated into existing structures and can even be installed indoors. The system is manufactured to size using high grade 6063 extruded aluminium profiles finished with thermosetting powder coating which provides superior overall performance for exterior product applications. All bolts, screws and pins are made from high grade...
The Muse retractable pergola system provides a simple yet elegant streamline outdoor structure for all weather use. The MUSE system offers up to 75sqm of protection at the touch of a button. Linking multiple systems is also possible and made easy by our patented storm channel joining system that ensures 100% waterproof join every time. Documentation Oztech...
The Aristo retractable pergola system provides a solution when bigger is best. Reinforced profiles are designed to withstanding bending and can project out to 10m. Documentation Oztech Aristo - technical details
The HARBOUR curved free standing retractable pergola system provides an advanced solution. The system offers a wind rating up to Beaufort class 11 (up to 117km/h) and is designed to stand up to even the worst of conditions rain, hail or shine. The system is manufactured to size using high grade 6063 extruded aluminium profiles finished with...
The Halo retractable roof system provides outdoor protection with an architectural edge. With its curved rafters, it provides more top space than the straight rafter Tera systems.The system offers a wind rating up to Beaufort class 11 (up to 117km/h) and is designed to stand up to even the worst of conditions rain, hail or shine.The system...

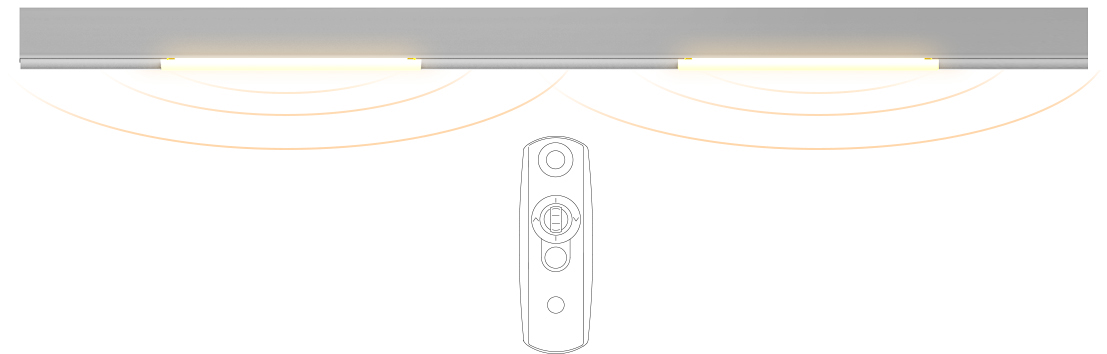

Remote-controlled, dimmable LED lighting is available on all systems. The Oztech LED lighting system is integrated into the profile of the fabric support rafters providing a slim-line and aesthetically pleasing solution.

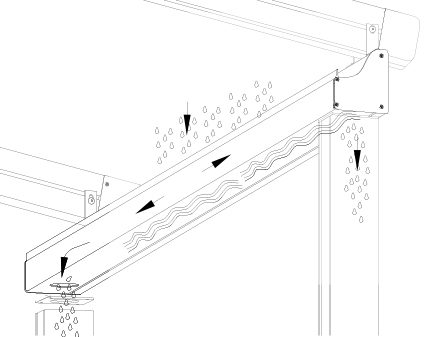

In-built Drainage
Drainage is in-built - the gutter along the front edge of the system drains down through any of the uprights/supporting posts.

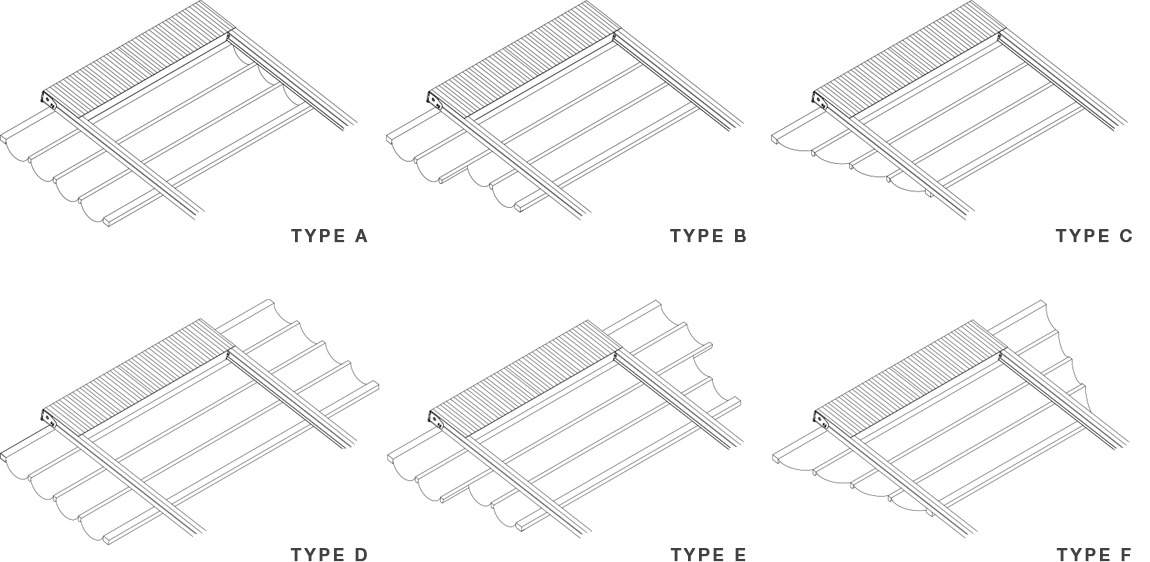

Overhang SoluTions
Each system is available with an optional overhang to allow the covered area to protrude past the rafter profile. Site specific overhang solutions such as stepped or wedge shapes are also an effective way to get maximum coverage for your area.
